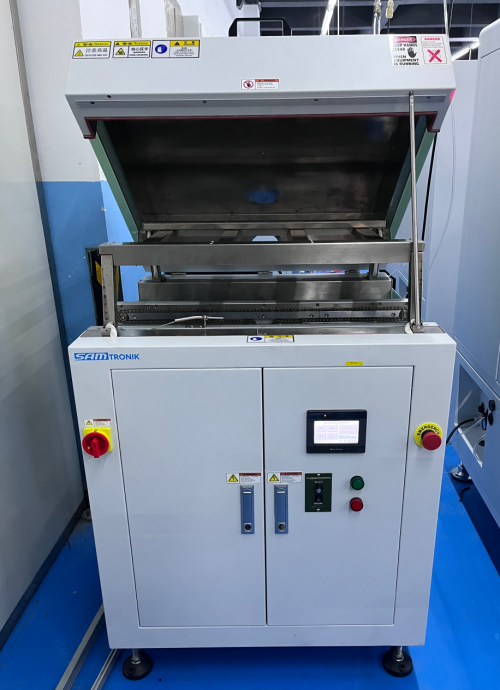

Infrared Luminous Furnace-0.8M

Model: SM-CSUV330

Review

Description

Product name: Infrared Luminous Furnace-0.8M

Model: SM-CSUV330(Front fix rail, direction: left to right, with HMI) （customized)

A brief introduction ：

An infrared curing oven is a machine that uses infrared radiation to quickly dry, bake, or cure coatings, inks, adhesives, or other materials on surfaces. It works by emitting electromagnetic waves that are absorbed by the target material, generating heat directly within it. This allows for fast, uniform, and energy-efficient curing compared to conventional hot air ovens. It is commonly used in industrial manufacturing processes, such as in automotive, printing, and electronics assembly lines.

Description:

1. Adjustable conveyor speed;

2, Conveyor running/ stop timer;

3, Temperature: 80-120 degree celcius;

4, Conveyor width: 50mm-330mm(Adjustable);

5, Each coating pallet weight: 1.5kg-2.0kg

Technique Parameter :

Transmission height ：910mm±30mm

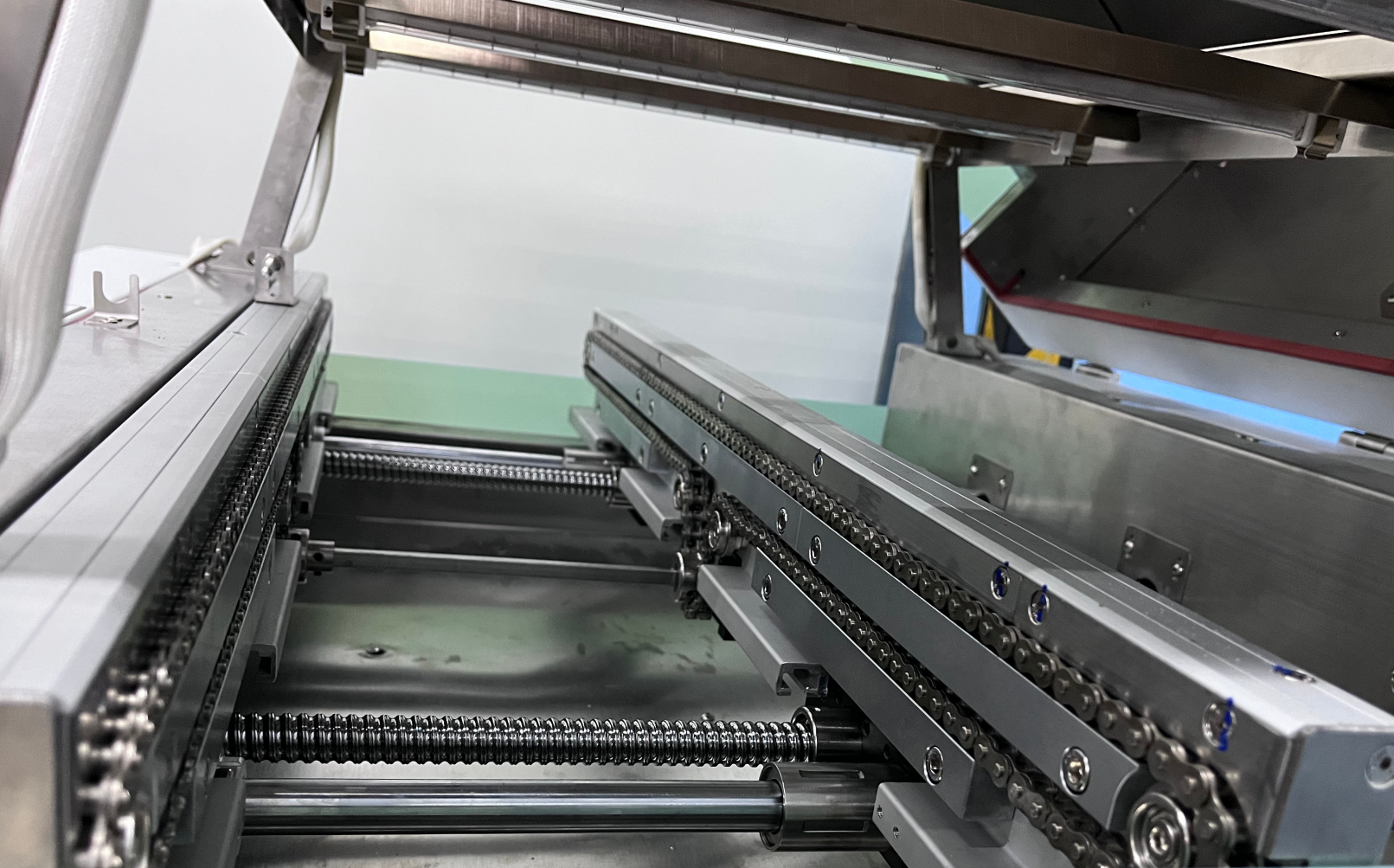

Conveyor：Chain

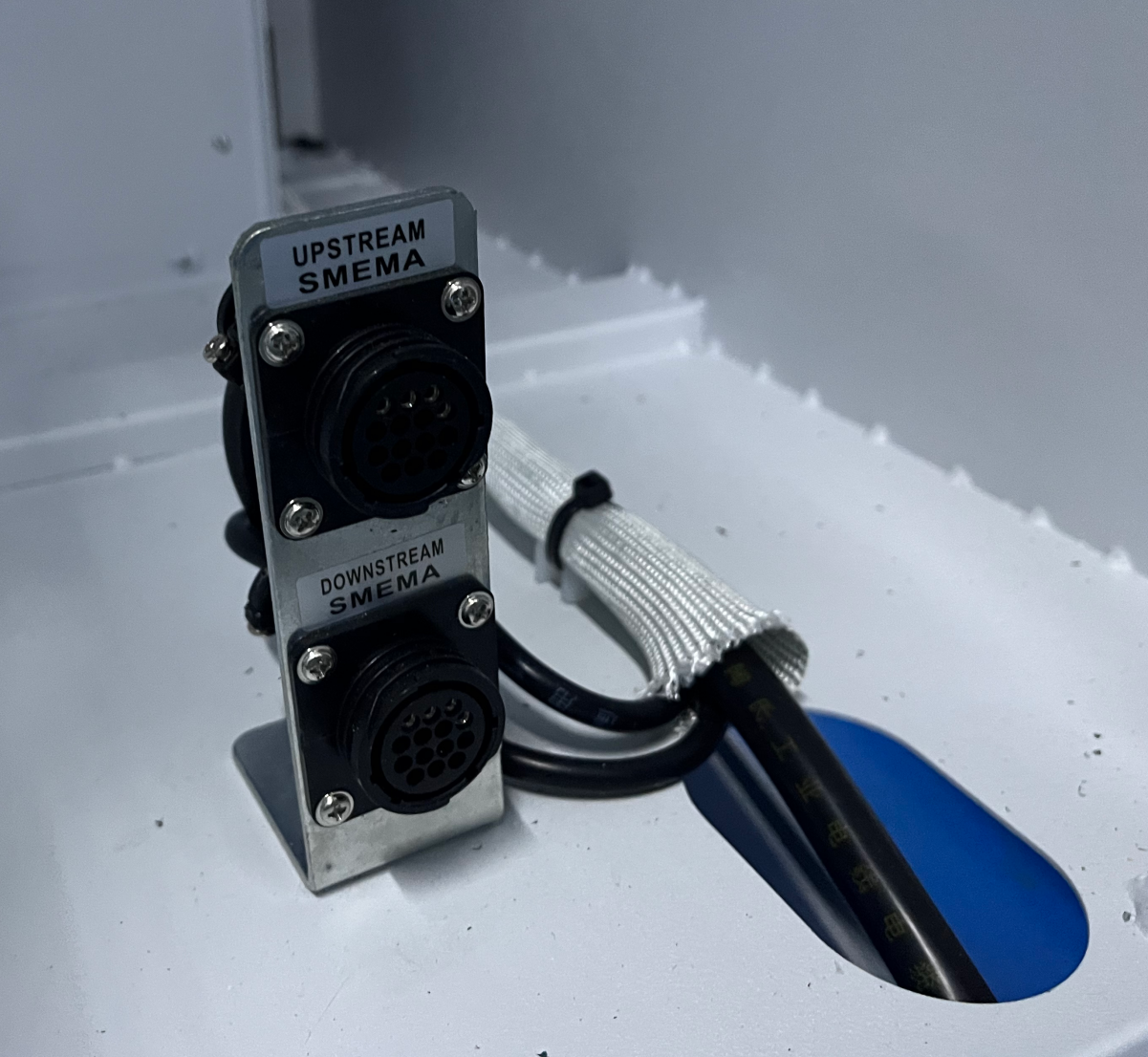

Interface：SMEMA

Transmission direction: left to right

Transmission speed： 0.5~15M/minute(adjustable)
